Description
Compatible Competitor Hydraulic Hoses
- Parker 791
- Weatherhead H470
- Aeroquip FC606
- Gates G6K

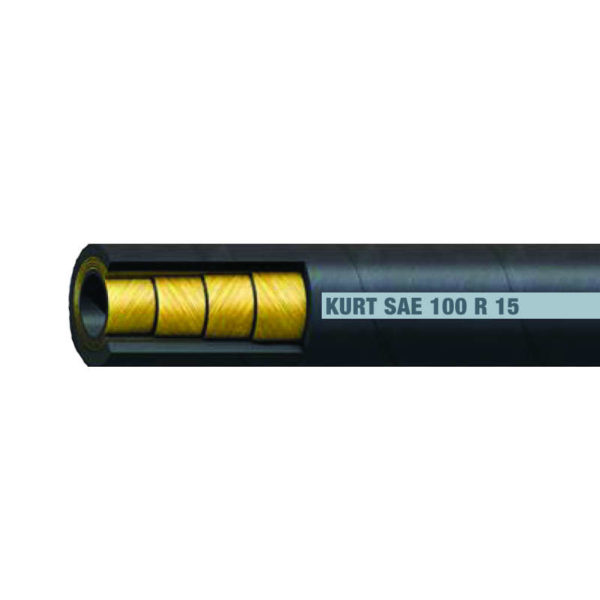

SAE 100 R15 Spiral Hydraulic Hose Technical Specifications:
Recommended For: High-pressure hydraulic oil lines
Temperature Operating Range: -40° F to +212° F
Cover Construction: Abrasion, ozone, and weather resistant synthetic rubber and meets flame resistant MSHA designation.
Tube Construction: Oil-resistant synthetic rubber.
Reinforcement: Six spirals of high tensile steel wire braid.
If you are on a phone, scroll the table to the left or right to see the other columns.
| Hose I.D. (inches) | Hose O.D. (inches) | Rated W.P. (PSI) | Min. Burst (PSI) | Min. Bend (inches) | lbs/foot | Coupling Series |
| 3/4 | 1.26 | 6,000 | 24,000 | 10.5 | 0.96 | WHP |
| 1 | 1.51 | 6,000 | 24,000 | 13 | 1.45 | WHP |
| 1 1/4 | 1.94 | 6,000 | 24,000 | 17.5 | 1.99 | JJ, 6W |
| 1 1/2 | 2.26 | 6,000 | 24,000 | 21 | 3.43 | JJ, 6W |
